Product Introduction:

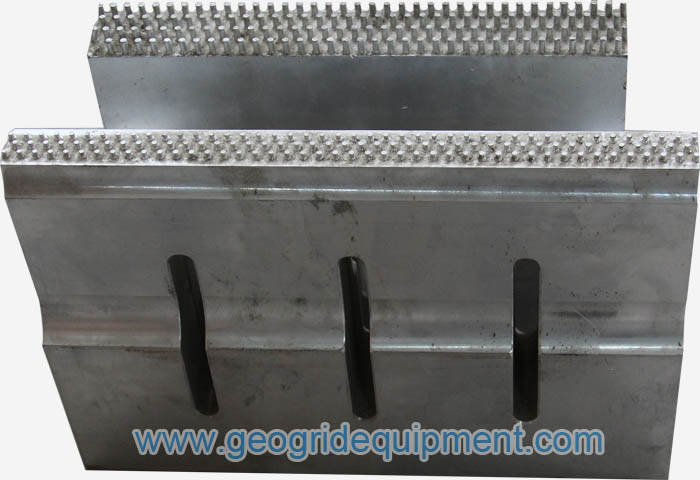

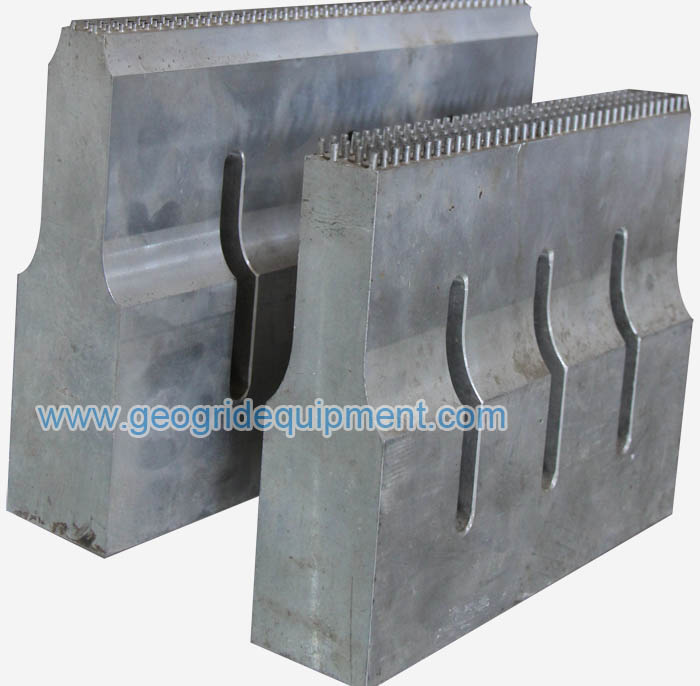

    Ultrasonic horns include all the ultrasonic transmitting ends. It couples ultrasonic energy generated by the ultrasonic transducer to workpieces being welded. The size and shape of ultrasonic horns depend on the material, shape and design of products being welded. Good-quality ultrasonic horns can transfer mechanical vibration converted from ultrasonic transducer effectively to workpieces to form continuous and stable welding. Ultrasonic horns designed improperly will destroy the ultrasonic welding effect even damage the ultrasonic transducer or generator directly. The ultrasonic horn is made of aviation aluminum and titanium imported from USA, and the frequency is 28KHz~15KHz.

    Product Properties:
    1. Resonant frequency matches ultrasonic transducer, amplitude distributed uniformly;
    2. The shape of Ultrasonic Welding Head adapts to shape of workpiece being welded;
    3. Made of aviation aluminum imported USA, horizontal adjustable design, rapid and convenient mold-adjusting.

    Material Selection:
    Material of ultrasonic horn is very important, it determines the life of welding head and the welding effect. At present, we make ultrasonic horns with aviation aluminum imported from USA and titanium alloy.

   Technical Parameter:

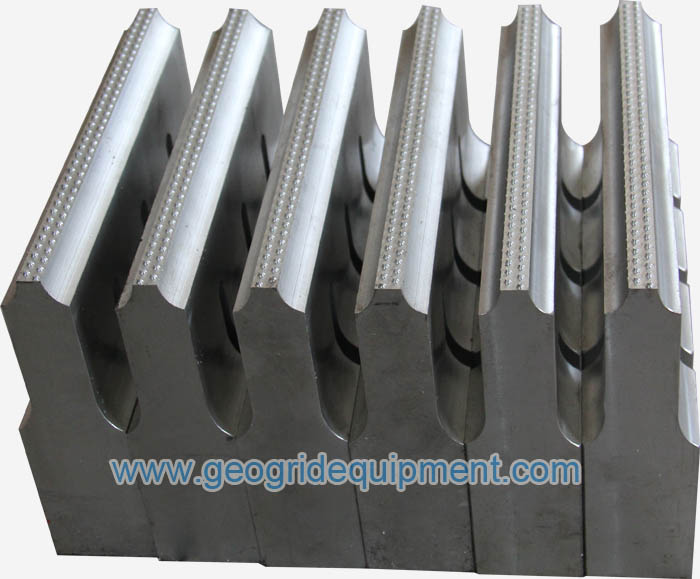

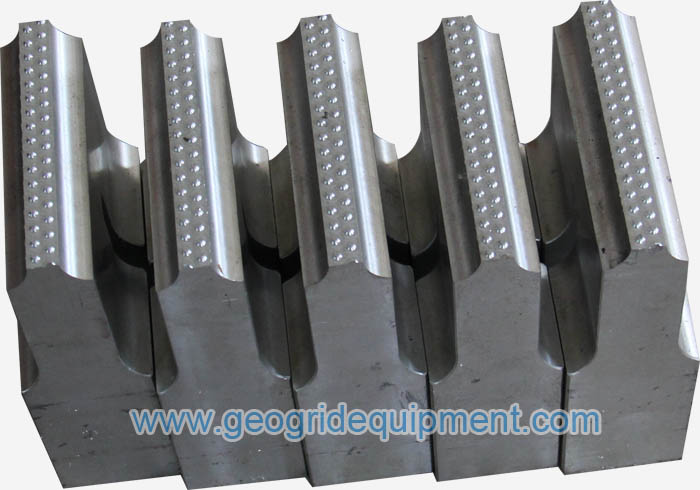

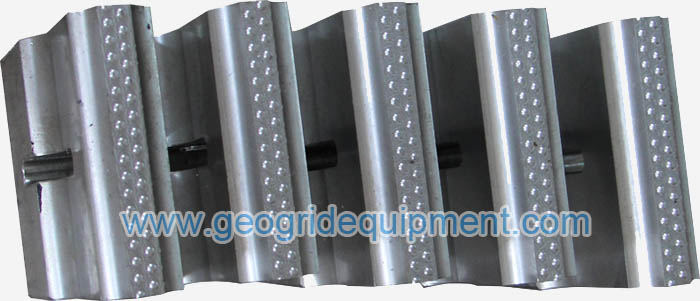

   Note: Geocell horn is two lines needle-shaped, and we can also produce horns according to customers’ drawings.
