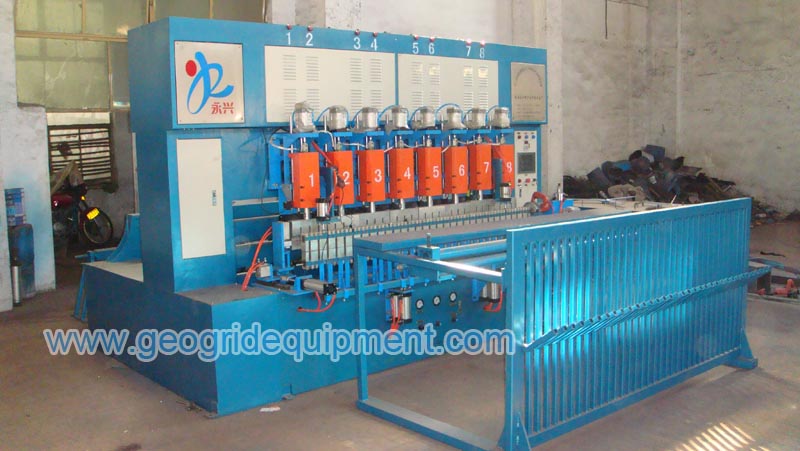

YXGRM-2000

The release date:[2014/12/31 10:20:12] The click rate:[1631] Source:TAIAN YONGXING ULTRASONIC WELDING EQUIPMENT FACTORY

Equipment products:

    Equipment Introduction:
    The production line is used to automatically knit and weld two kinds of strips. The supporting material of coal-mine roof which is used when exploiting mines; The steel-plastic complex net is used to reinforce the road basement and embankment.
    Equipment Features:
    1.PLC control system.
    2.The transducer is the Germany piezoelectric ceramics ,the mold is made of aluminium alloy from USA
    3.The pneumatic adopts the Airtac Material.
    4.Use the supersonic design and welding depth establishment .
    5.The intension between 20KN-200KN;
    6.The mining geogrid size:40X40mm，50X50mm, 65X65mm
    Equipment Parameters:

Item	Specification	Item	Specification
No. of welding heads	8	The whole machine welding width	1m～2m
Max power（KW)	12	Volume of air pressure	1.5~2.0m³
Size of the equipment(LWH）(m)	5.04.02.2	Transverse weld spacing	40mm, 50mm, 65mm
Rated input voltage	AC380V 50-60HZ	The longitudinal weld spacing	40mm, 50mm, 65mm
Rated input pressure	0.6~0.8MPa	Daily output	1000
