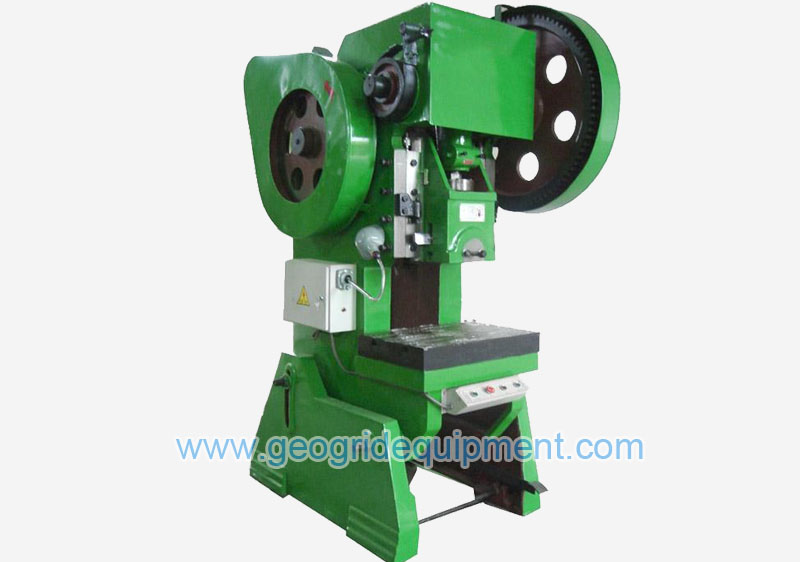

J23 Series C-Frame Inclinable Power Press

The release date:[2015/1/10 11:07:12] The click rate:[1729] Source:TAIAN YONGXING ULTRASONIC WELDING EQUIPMENT FACTORY

Equipment products:

    Performance Features:
    1）The machine body adopts foundry technology and crankshaft traverse-placing structure. The machine is designed into compact structure.
    2）The machine has a rigidity rotating-button clutch which is easy structured, convenient to operate and maintenance.
    3） Gear-driving, steady performance, tiny shock and low noises.
    4） Shear plate type overload protector.
    5）The machine can tilt 25° for material-withdrawing to improve productivity.

Technical Parameter:

Technical data Model	Unit	J23-25	J23-40	J23-80
Nominal Pressure	KN	250	400	800
Nominal Stroke	mm	5	6	9
Slider Stroke	mm	70	80	150
Stroke Numbers	times/min	55	50	45
Maximum Shut Height	mm	260	295	380
Shut Height Regulation	mm	75	80	85
Distance from Slider Center to Frame	mm	190	220	290
Columns Distance	mm	260	305	385
Slider Bottom Size ( front to back × left to right )	mm	185×210	250×380	350×370
Mold Handle Hole ( diameter × depth )	mm	Φ40×60	Φ50×75	Φ50×80
Working Table Dimension ( front to back × left to right )	mm	360×560	420×630	540×800
Working Table Pad Dimension ( thickness × aperture )	mm	65×Φ120	80×Φ160	100×Φ200
Engine Power	KW	3	5.5	7.5
Dimension ( front to back × left to right × height )	mm	1256×950×2025	1137×1605×2325	1895×1360×2680
Weight	KG	1800	3600	5800
